HOWO TX 8X4 50cubic Dump Truck
Key words:
Classification:
Product Description
HOWO TX 8X4 50cubic Dump Truck is a new flagship model of engineering dump truck built by SINOTRUK on the basis of classic HOWO engineering dump truck with upgraded power, upgraded configuration, matched with MAN power and Weichai series of high-end powertrain, synchronized with German MAN manufacturing and quality standards, and verified by all working conditions.
|
Item |
Model & Specification of Commodity |
|
1 |
SINOTRUK HOWO-TX 8×4 DMUPER Driving type: 8X4 Wheelbase:5425mm Engine:MC13.540-30 EUROⅢ,with EVB Transmission:HW25712XAC, 12 forward & 2 reverse,with retarder Cab:TX-F, with air conditioner and safety belts Steering: Recirculating-ball hydraulic boosting, Ratio:22.2～26.2 Frame:8+8+8/316 Front axle:VGD95 (9.5ton) Drum braking Rear axle:MCP23ZG Double bridge,Drum braking(Radio:5.92) Tires:12.00R24 mining pattern tubeless Superstructure:9200×2500×2300mm, U-shape box, bottom plate is 8mm, side plate is 6mm, H850 plate, HYVA front lifting system. Color: Optional WITH:ABS,parker fuel coarse filter, reverse buzzer, double side warning light,inter-cooler protector,vehicle front under protection,front and rear stabilizer bars Other: factory specification Standard

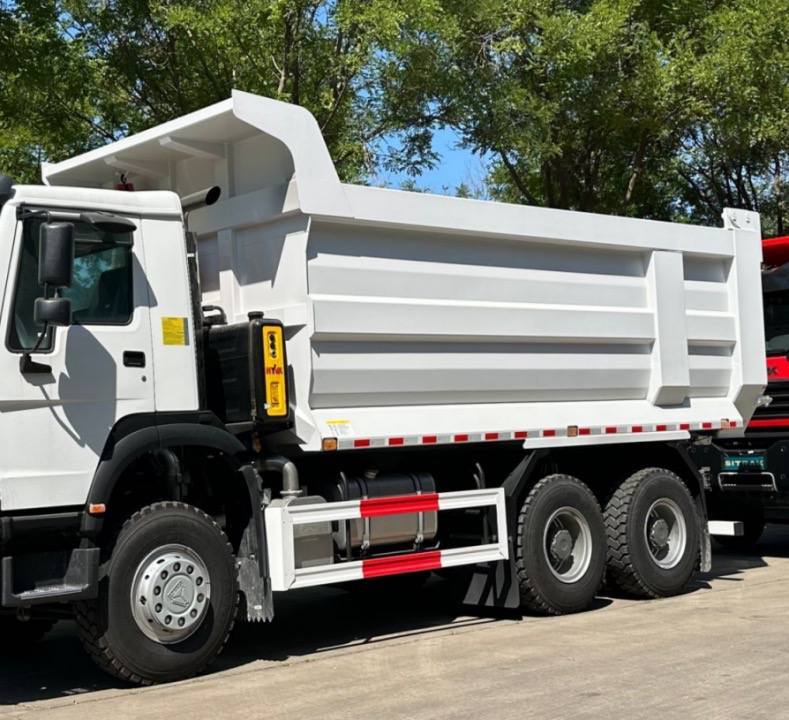

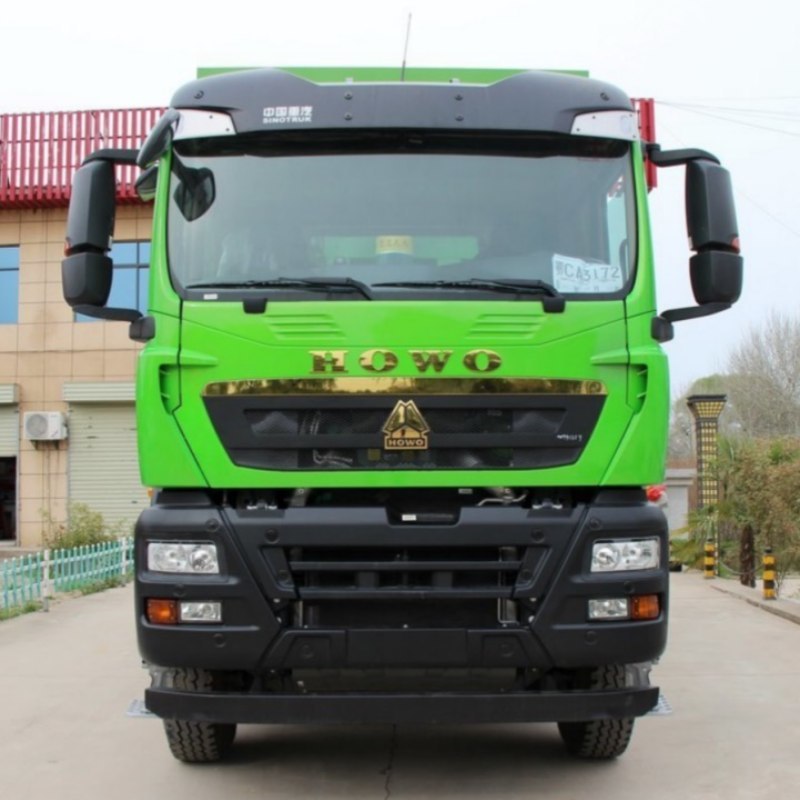

The image is only a reference. |
- 产品描述
-
- Commodity name: HOWO TX 8X4 50cubic Dump Truck
HOWO TX 8X4 50cubic Dump Truck is a new flagship model of engineering dump truck built by SINOTRUK on the basis of classic HOWO engineering dump truck with upgraded power, upgraded configuration, matched with MAN power and Weichai series of high-end powertrain, synchronized with German MAN manufacturing and quality standards, and verified by all working conditions.
HOWO TX 8X4 50cubic Dump Truck is a new flagship model of engineering dump truck built by SINOTRUK on the basis of classic HOWO engineering dump truck with upgraded power, upgraded configuration, matched with MAN power and Weichai series of high-end powertrain, synchronized with German MAN manufacturing and quality standards, and verified by all working conditions.
Item
Model & Specification of Commodity
1
SINOTRUK HOWO-TX 8×4 DMUPER
Driving type: 8X4
Wheelbase:5425mm
Engine:MC13.540-30 EUROⅢ,with EVB
Transmission:HW25712XAC, 12 forward & 2 reverse,with retarder
Cab:TX-F, with air conditioner and safety belts
Steering: Recirculating-ball hydraulic boosting, Ratio:22.2～26.2
Frame:8+8+8/316
Front axle:VGD95 (9.5ton) Drum braking
Rear axle:MCP23ZG Double bridge,Drum braking(Radio:5.92)
Tires:12.00R24 mining pattern tubeless
Superstructure:9200×2500×2300mm, U-shape box, bottom plate is 8mm, side plate is 6mm, H850 plate, HYVA front lifting system.
Color: Optional
WITH:ABS,parker fuel coarse filter, reverse buzzer, double side warning light,inter-cooler protector,vehicle front under protection,front and rear stabilizer bars
Other: factory specification Standard
The image is only a reference.
